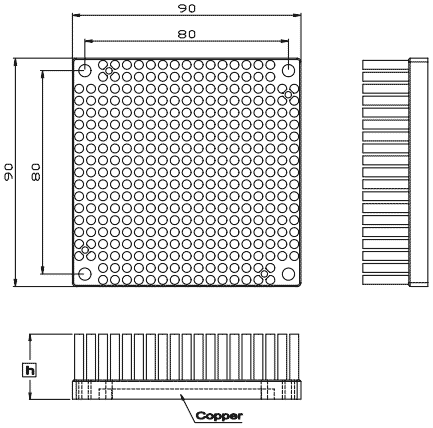

:: MP 90 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MP 90-56 90 x 90 56 761 By request

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MP90-56 indicate 90x90mm is package footprint and 56 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

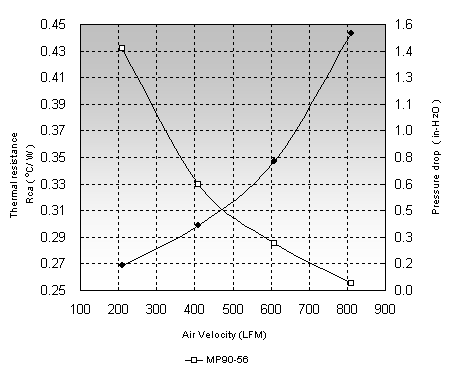

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MP 90-56  0.43 0.33 0.29
