:: MP 60 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MP 60-15  60 x 60 15  80 By request
MP 60-20  60 x 60  20 92 By request
MP 60-25 60 x 60 25  104 By request
MP 60-30  60 x 60 30  116 By request
MP 60-40  60 x 60 40 128 By request
MP60
Material
: Aluminum 6063
Finish
: Nature anodize
Remarks

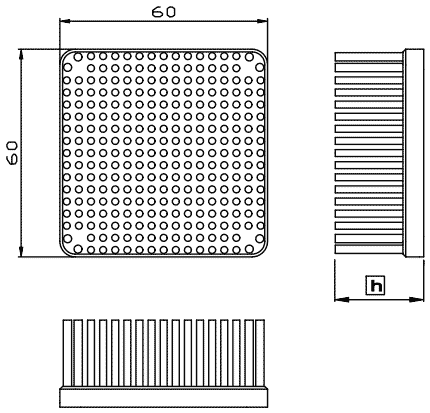

: Model number MP60-15 indicate 60x60mm is package footprint and 15 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

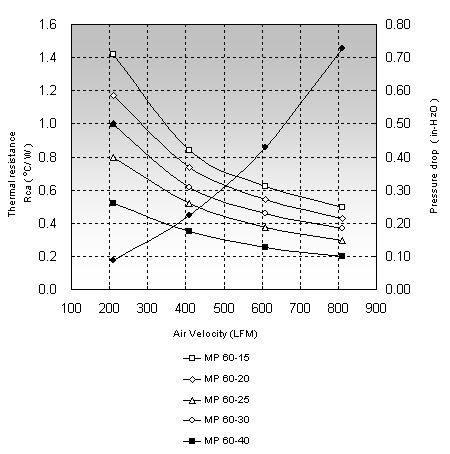

:: Rth ( oC/W ) ::
Noname
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MP 60-15  1.42 0.84 0.62
MP 60-20  1.17 0.73 0.54
MP 60-25  0.80 0.52 0.38
MP 60-30 1.00 0.62  0.46
MP 60-40 0.52  0.35  0.25
