MP5861 – Malico Inc.

Home » Passive Heat Sink » MP Series » MP5861 – Malico Inc.
:: MP 5861 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MP 5861-10 58 x 61 10 30.50  By request
MP 5861-20  58 x 61 20 40.80  By request
MP 5861-25  58 x 61 25 45.90  By request

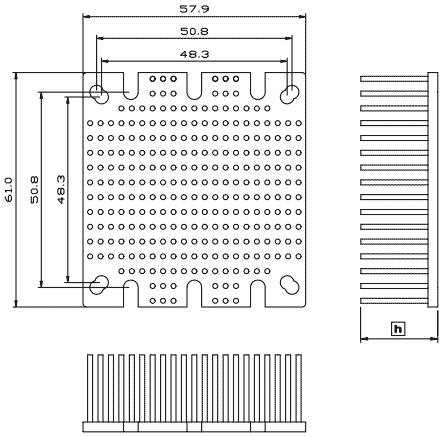

mp5861
Material
 : Aluminum 6063
Finish
 : Black anodize
Remarks
 : Model number MP5861-10 indicate 58x61mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension
:: Rth ( oC/W ) ::
MPC5861
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MP 5861-10  1.17  0.80 0.60
MP 5861-20  1.01  0.65  0.49
MP 5861-25 0.85  0.55  0.43
