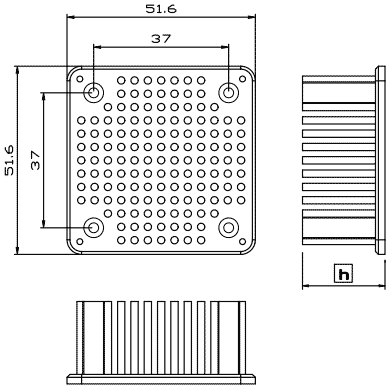

:: MP 52 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MP 52-12 52 x 52  11.6 30.5 By request MP 52-15  52 x 52  14.6 34.5 By request MP 52-18  52 x 52 17.6 38.5 By request MP 52-21  52 x 52 20.6 42.5 By request MP 52-23  52 x 52 22.6 45.0 By request MP 52-28  52 x 52 27.6 52.0 By request MP 52-33  52 x 52 32.6 58.5 By request

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MP52-12 indicate 52x52mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

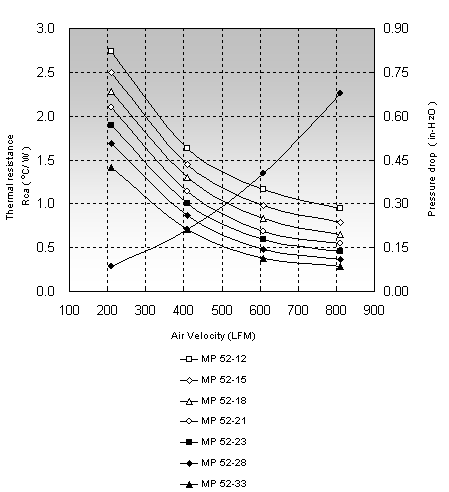

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MP 52-12 2.74 1.63 1.16 MP 52-15 2.50 1.45 0.98 MP 52-18  2.28 1.30 0.84 MP 52-21 2.10 1.14 0.69 MP 52-23 1.90 1.00 0.59 MP 52-28  1.69 0.86 0.48 MP 52-33  1.42 0.71 0.38
