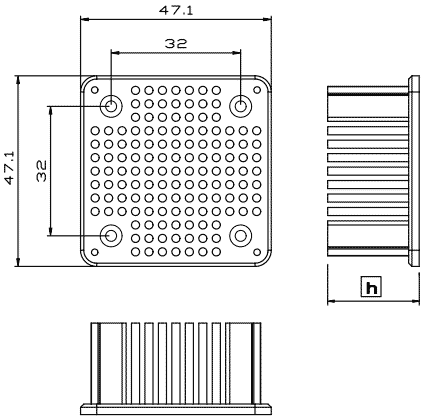

:: MP 475 :: Dimension

Model No.	L x W (mm)	Height (mm)	Weight (grams)	CAD
MP 47.5-12	47.5 x 47.5	11.6	27.0	By request
MP 47.5-15	47.5 x 47.5	14.6	31.0	By request
MP 47.5-18	47.5 x 47.5	17.6	35.0	By request
MP 47.5-21	47.5 x 47.5	20.6	39.0	By request
MP 47.5-23	47.5 x 47.5	22.6	41.5	By request
MP 47.5-28	47.5 x 47.5	27.6	48.0	By request
MP 47.5-33	47.5 x 47.5	32.6	54.5	By request

mp475 d

Material	:	Aluminum 6063
Finish	:	Black anodize
Remarks	:	Model number MP47.5-12 indicate 47.5×47.5mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

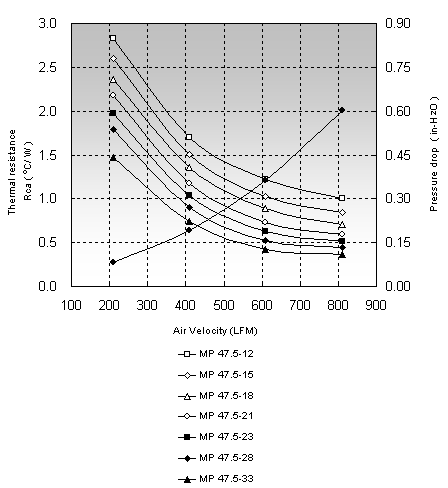

:: Rth ( ^oC/W ) ::

Noname

	Air Velocity / Rth ( ^oC/W )
	200(LFM)	400(LFM)	600(LFM)
MP 47.5-12	2.83	1.70	1.23
MP 47.5-15	2.60	1.50	1.02
MP 47.5-18	2.36	1.35	0.89
MP 47.5-21	2.18	1.18	0.73
MP 47.5-23	1.98	1.04	0.63
MP 47.5-28	1.79	0.09	0.52
MP 47.5-33	1.47	0.74	0.43
