MP37.5 – Malico Inc.

Home » Passive Heat Sink » MP Series » MP37.5 – Malico Inc.

:: MP37.5 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MP 37.5-12 37.5 x 37.5 11.6 16.1 By request MP 37.5-15 37.5 x 37.5 14.6 18.3 By request MP 37.5-18 37.5 x 37.5 17.6 20.4 By request MP 37.5-21 37.5 x 37.5 20.6 22.5 By request MP 37.5-23 37.5 x 37.5 22.6 23.9 By request MP 37.5-28 37.5 x 37.5 27.6 27.4 By request MP 37.5-33 37.5 x 37.5 32.6 30.9 By request

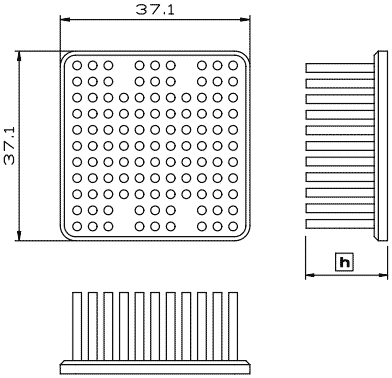

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MP37.5-12 indicate 37.5×37.5mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

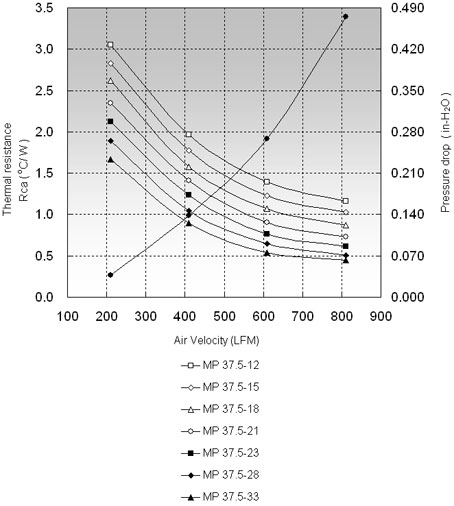

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MP 37.5-12 3.05 1.97 1.39 MP 37.5-15 2.83 1.78 1.23 MP 37.5-18 2.62 1.58 1.07 MP 37.5-21 2.35 1.41 0.90 MP 37.5-23 2.12 1.24 0.76 MP 37.5-28 1.89 1.05 0.64 MP 37.5-33 1.67 0.90 0.54
