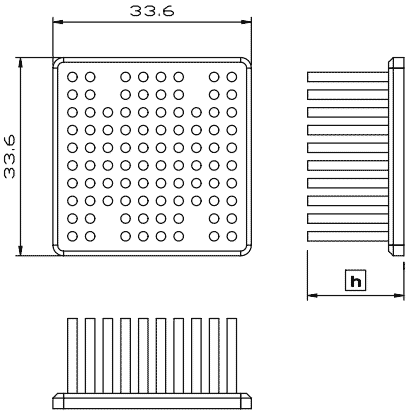

:: MP34 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MP 34-12 34 x 34 11.6 12.6 By request MP 34-15 34 x 34 14.6 14.1 By request MP 34-18 34 x 34 17.6 15.7 By request MP 34-21 34 x 34 20.6 17.2 By request MP 34-23 34 x 34 22.6 18.2 By request MP 34-28 34 x 34 27.6 20.7 By request MP 34-33 34 x 34 32.6 23.3 By request

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MP34-12 indicate 34x34mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

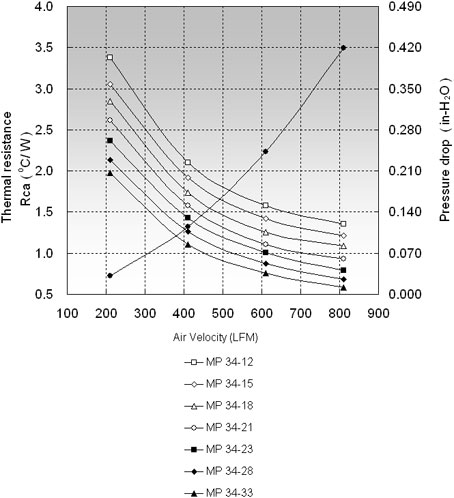

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MP 34-12 3.38 2.10 1.58 MP 34-15 3.06 1.92 1.42 MP 34-18 2.85 1.74 1.25 MP 34-21 2.62 1.57 1.11 MP 34-23 2.37 1.43 1.00 MP 34-28 2.13 1.26 0.87 MP 34-33 1.98 1.11 0.76
