MP33 – Malico Inc.

Home » Passive Heat Sink » MP Series » MP33

:: MP33 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MP 33-12 33 x 33 11.6 11.2 By request MP 33-15 33 x 33 14.6 12.4 By request MP 33-18 33 x 33 17.6 13.6 By request MP 33-21 33 x 33 20.6 14.8 By request MP 33-23 33 x 33 22.6 15.6 By request MP 33-28 33 x 33 27.6 17.6 By request MP 33-33 33 x 33 32.6 19.7 By request

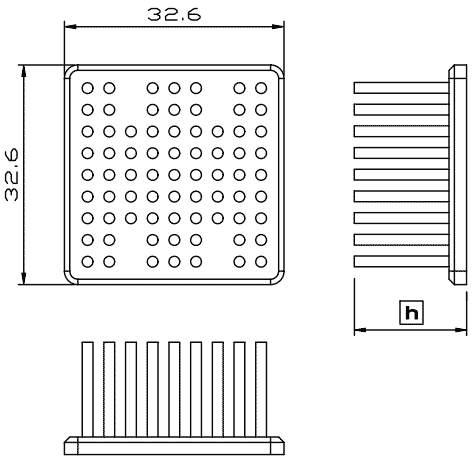

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MP33-12 indicate 33x33mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

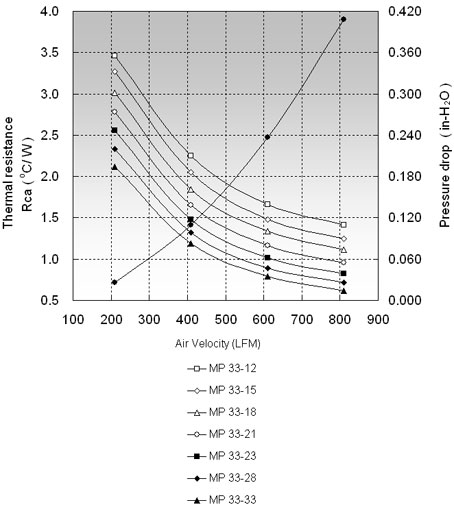

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MP 33-12 3.46 2.25 1.66 MP 33-15 3.27 2.05 1.48 MP 33-18 3.01 1.84 1.34 MP 33-21 2.78 1.65 1.16 MP 33-23 2.56 1.48 1.02 MP 33-28 2.33 1.32 0.89 MP 33-33 2.12 1.19 0.79
