:: MP31 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MP 31-12 31 x 31 11.6 9.8 By request MP 31-15 31 x 31 14.6 10.9 By request MP 31-18 31 x 31 17.6 11.9 By request MP 31-21 31 x 31 20.6 13.0 By request MP 31-23 31 x 31 22.6 13.7 By request MP 31-28 31 x 31 27.6 15.4 By request MP 31-33 31 x 31 32.6 17.1 By request

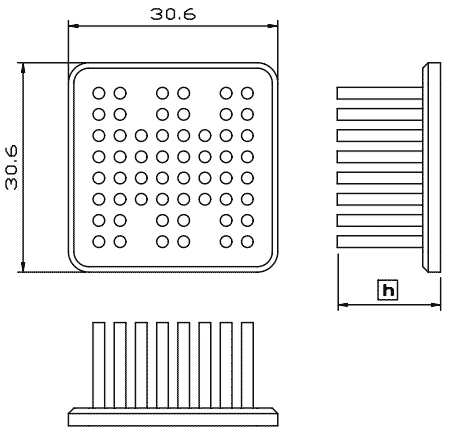

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MP31-12 indicate 31x31mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

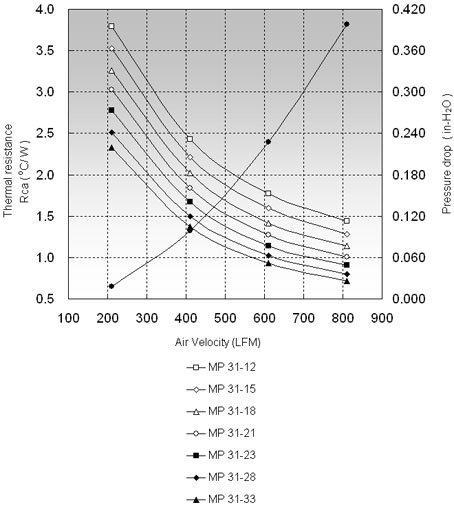

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MP 31-12 3.79 2.43 1.77 MP 31-15 3.53 2.21 1.60 MP 31-18 3.26 2.02 1.41 MP 31-21 3.03 1.84 1.27 MP 31-23 2.78 1.67 1.14 MP 31-28 2.52 1.5 1.02 MP 31-33 2.33 1.38 0.93
