:: MP29 :: Dimension

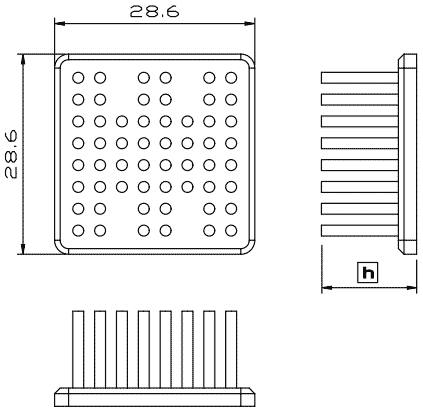

Model No. L x W (mm) Height (mm) Weight (grams) CAD MP 29-12 29 x 29 11.6 8.6 By request MP 29-15 29 x 29 14.6 9.5 By request MP 29-18 29 x 29 17.6 10.5 By request MP 29-21 29 x 29 20.6 11.4 By request MP 29-23 29 x 29 22.6 12.0 By request MP 29-28 29 x 29 27.6 13.6 By request MP 29-33 29 x 29 32.6 15.1 By request

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MP29-12 indicate 29x29mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

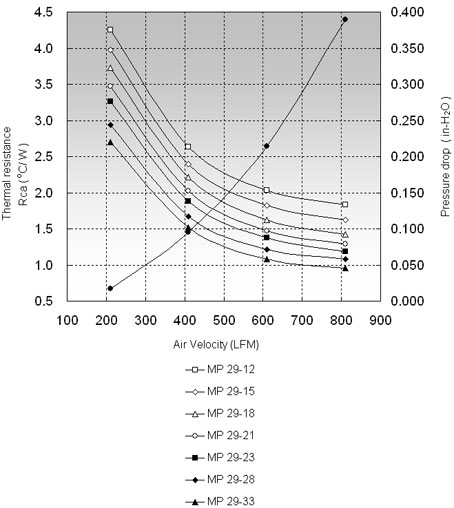

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MP 29-12 4.25 2.63 2.03 MP 29-15 3.98 2.40 1.82 MP 29-18 3.73 2.21 1.62 MP 29-21 3.47 2.02 1.48 MP 29-23 3.26 1.88 1.38 MP 29-28 2.94 1.67 1.22 MP 29-33 2.70 1.52 1.08
