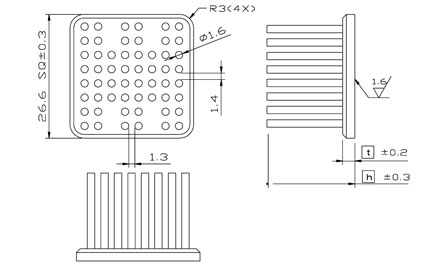

:: MP27 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MP 27-12 27 x 27 11.6 7.8 By request MP 27-15 27 x 27 14.6 8.8 By request MP 27-18 27 x 27 17.6 9.7 By request MP 27-21 27 x 27 20.6 10.6 By request MP 27-23 27 x 27 22.6 11.2 By request MP 27-28 27 x 27 27.6 12.8 By request MP 27-33 27 x 27 32.6 14.3 By request

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MP27-12 indicate 27x27mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

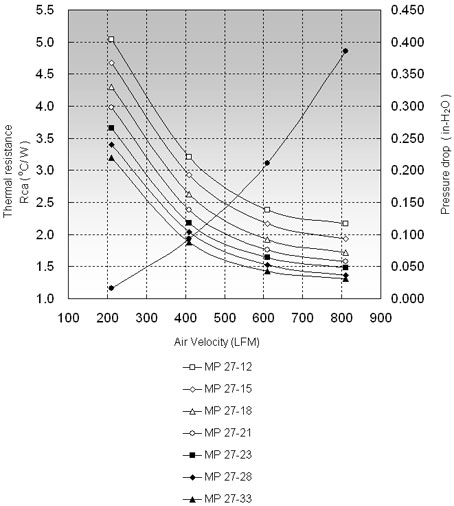

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MP 27-12 5.04 3.21 2.38 MP 27-15 4.67 2.93 2.17 MP 27-18 4.30 2.63 1.92 MP 27-21 3.98 2.38 1.76 MP 27-23 3.66 2.18 1.64 MP 27-28 3.40 2.04 1.53 MP 27-33 3.20 1.88 1.43
