:: MP24 :: Dimension

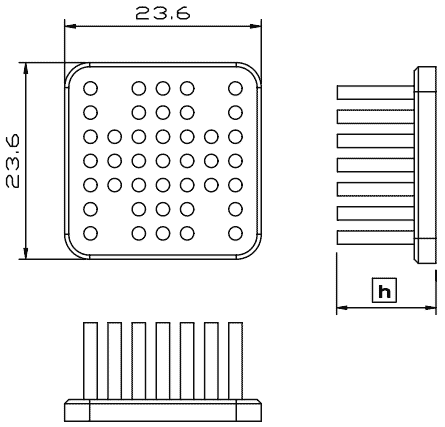

Model No. L x W (mm) Height (mm) Weight (grams) CAD MP 24-12 24 x 24 11.6 6.0 By request MP 24-15 24 x 24 14.6 6.7 By request MP 24-18 24 x 24 17.6 7.4 By request MP 24-21 24 x 24 20.6 8.0 By request MP 24-23 24 x 24 22.6 8.5 By request MP 24-28 24 x 24 27.6 9.6 By request MP 24-33 24 x 24 32.6 10.8 By request

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MP24-12 indicate 16x16mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

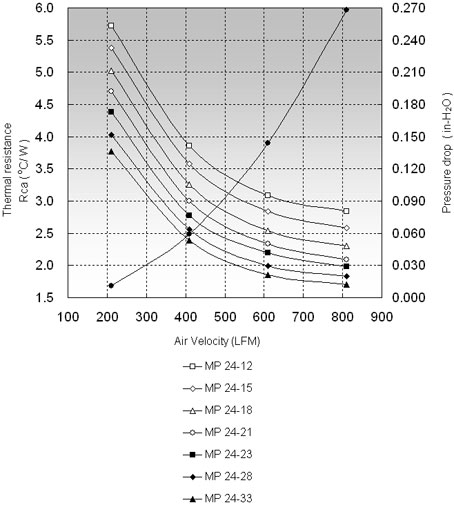

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MP 24-12 5.73 3.86 3.09 MP 24-15 5.38 3.58 2.84 MP 24-18 5.02 3.26 2.54 MP 24-21 4.70 3.00 2.33 MP 24-23 4.38 2.77 2.19 MP 24-28 4.03 2.56 1.99 MP 24-33 3.77 2.39 1.85
