:: MP23 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MP 23-12 23 x 23 11.6 5.9 By request
MP 23-15 23 x 23 14.6 6.7 By request
MP 23-18 23 x 23 17.6 7.5 By request
MP 23-21 23 x 23 20.6 8.2 By request
MP 23-23 23 x 23 22.6 8.7 By request
MP 23-28 23 x 23 27.6 10.0 By request
MP 23-33 23 x 23 32.6 11.3 By request

Material
 : Aluminum 6063
Finish
 : Black anodize
Remarks
 :

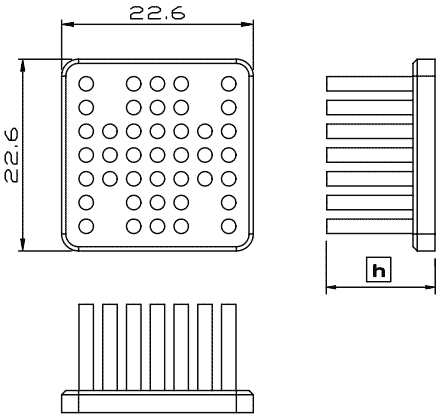

Model number MP23-12 indicate 23x23mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

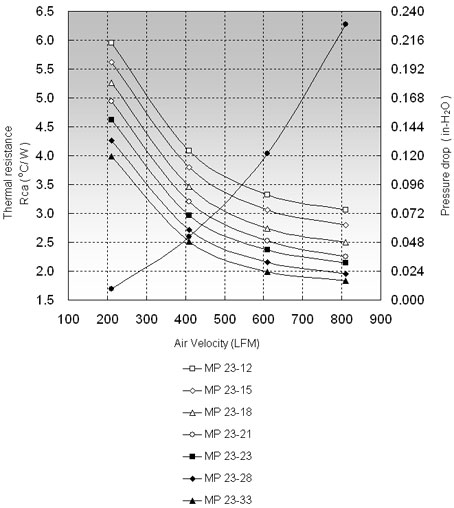

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MP 23-12 5.96 4.08 3.32
MP 23-15 5.62 3.80 3.07
MP 23-18 5.26 3.47 2.74
MP 23-21 4.94 3.20 2.53
MP 23-23 4.62 2.97 2.37
MP 23-28 4.26 2.71 2.15
MP 23-33 3.99 2.51 1.99
