:: MP160 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MP 160-72 160 x 160 72 1,850 By request
MP160
Material
: Aluminum 6063
Finish
: Nature anodize
Remarks

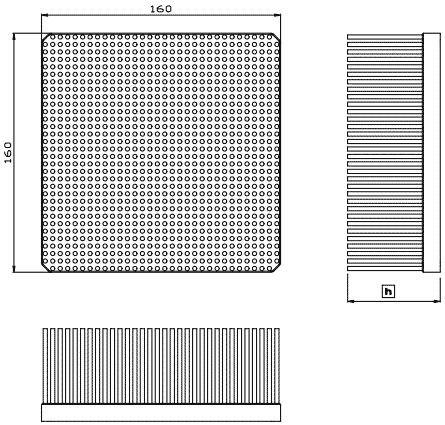

: Model number MP160-72 indicate 160x160mm is package footprint and 72 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

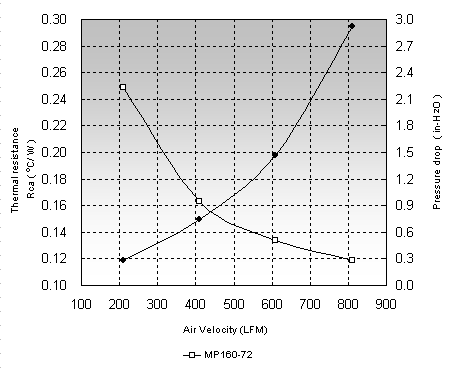

:: Rth ( oC/W ) ::
Noname
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MP 160-72  0.25  0.16  0.13
