:: MP16 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MP 16-11 16 x 16 11.3 3.0 By request MP 16-14 16 x 16 14.3 3.5 By request MP 16-17 16 x 16 17.3 4.0 By request MP 16-20 16 x 16 20.3 4.4 By request MP 16-22 16 x 16 22.3 4.7 By request MP 16-27 16 x 16 27.3 5.5 By request MP 16-32 16 x 16 32.3 6.3 By request

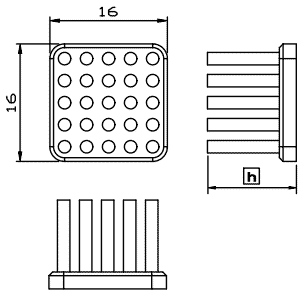

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MP16-11 indicate 16x16mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

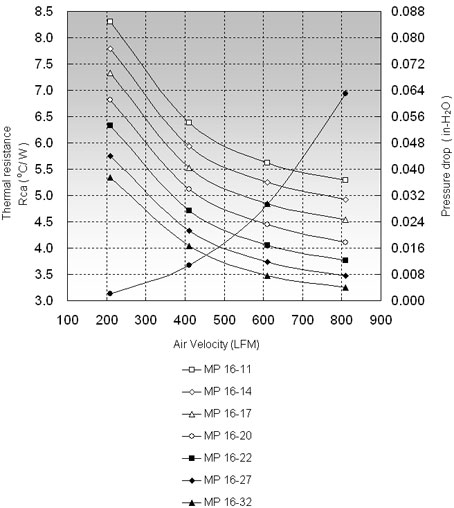

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MP 16-11 8.30 6.38 5.62 MP 16-14 7.79 5.93 5.24 MP 16-17 7.33 5.53 4.84 MP 16-20 6.82 5.12 4.45 MP 16-22 6.33 4.71 4.05 MP 16-27 5.75 4.33 3.74 MP 16-32 5.34 4.04 3.47
