MP11761 – Malico Inc.

Home » Passive Heat Sink » MP Series » MP11761 – Malico Inc.
:: MP 11761 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MP 11761-10 117 x 61 10 66.00 By request
MP 11761-20 117 x 61 20  90.00  By request
MP 11761-25 117 x 61 25  102.00  By request

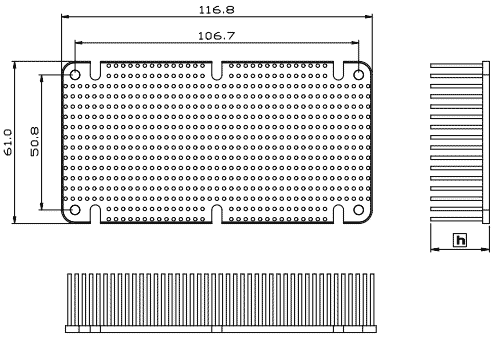

mp11761 d
Material
 : Aluminum 6063
Finish
 : Black anodize
Remarks
 : Model number MP11761-10 indicate 117x61mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension
:: Rth ( oC/W ) ::
MP11761
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MP 11761-10 0.66 0.43 0.32
MP 11761-20  0.56 0.35 0.26
MP 11761-25  0.49 0.30  0.23
