MP100 – Malico Inc.
Home » Passive Heat Sink » MP Series »

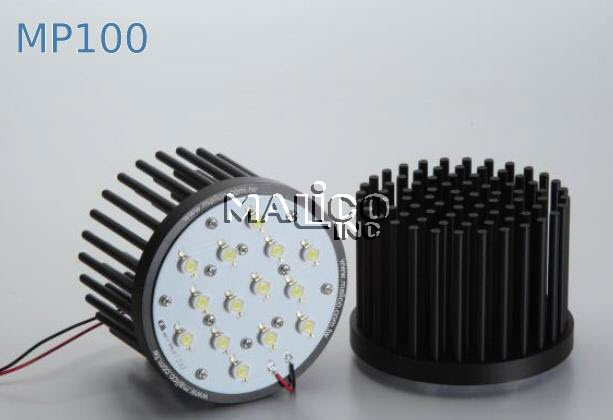

This product doesn’t include LED, heat sink only.
| Model No. | Height (mm) | Thickness (mm) | Weight (grams) | Air Velocity / Rth ( oC/W ) | ||||
| Natural Convection | 200lfm | 400 lfm | 600 lfm | CAD | ||||
| MPS100-30 | 30 | 10 | 280.00 | 3.11 | 1.21 | 0.96 | 0.80 | By request |
| MPS100-40 | 40 | 10 | 314.00 | 2.54 | 0.99 | 0.77 | 0.62 | By request |
| MPS100-50 | 50 | 10 | 348.00 | 2.30 | 0.88 | 0.69 | 0.55 | By request |
| MPS100-60 | 60 | 10 | 382.00 | 2.08 | 0.78 | 0.56 | 0.48 | By request |
| MPS100-70 | 70 | 10 | 416.00 | 1.83 | 0.67 | 0.49 | 0.40 | By request |
* All Rth are tested under natural convention
