:: MPC 5837 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MPC 5837-10 58 x 37 10 66.00 By request
MPC 5837-20 58 x 37 20 85.00 By request
MPC 5837-25 58 x 37 25  95.00 By request
MPC5837
Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:

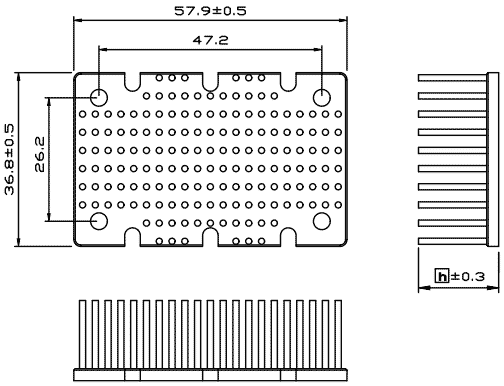

Model number MPC5837-10 indicate 58x37mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::
MPC5837
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MPC 5837-10  1.24 0.91 0.72
MPC 5837-20  1.08 0.77  0.61
MPC 5837-25 0.94 0.66 0.54
