:: MPC45 :: Dimension

Model No.	L x W (mm)	Height (mm)	Weight (grams)	CAD
MPC 45-12	45 x 45	11.6	68.8	By request
MPC 45-15	45 x 45	14.6	78.0	By request
MPC 45-18	45 x 45	17.6	87.3	By request
MPC 45-21	45 x 45	20.6	96.5	By request
MPC 45-23	45 x 45	22.6	102.7	By request
MPC 45-28	45 x 45	27.6	118.1	By request
MPC 45-33	45 x 45	32.6	133.5	By request

MPC45

Material	:	Copper 1100
Finish	:	Anti-Oxidation

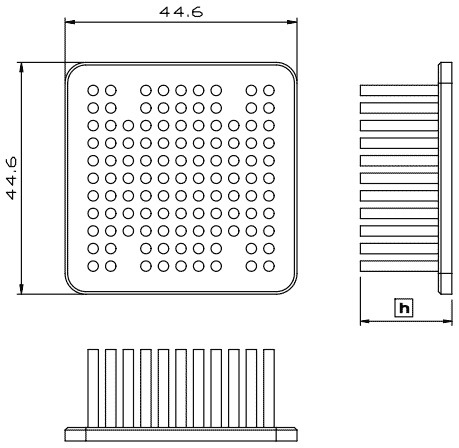

Remarks	:	Model number MPC45-12 indicate 45x45mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

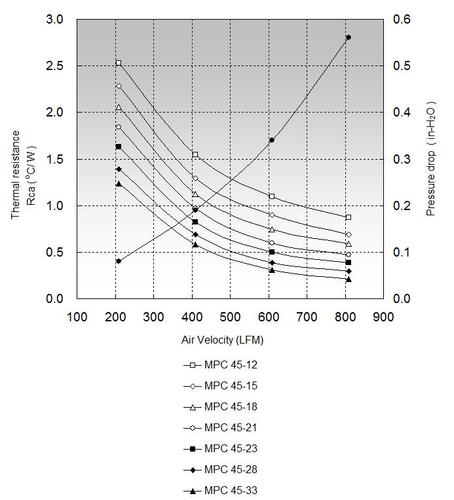

:: Rth ( ^oC/W ) ::

	Air Velocity / Rth ( ^oC/W )
	200(LFM)	400(LFM)	600(LFM)
MPC 45-12	2.67	1.66	1.19
MPC 45-15	2.44	1.44	1.00
MPC 45-18	2.21	1.23	0.84
MPC 45-20	2.02	1.06	0.71
MPC 45-23	1.82	0.92	0.59
MPC 45-28	0.60	0.78	0.49
MPC 45-33	1.42	0.63	0.39
