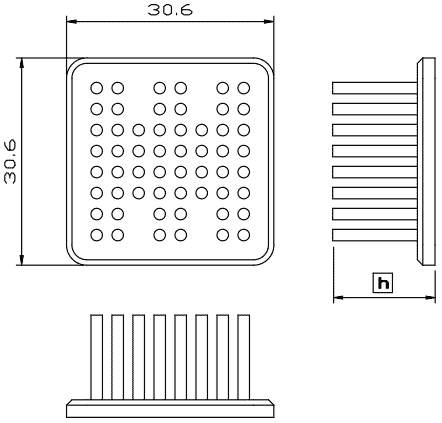

:: MPC31 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MPC 31-12 31 x 31 11.6 31.9 By request MPC 31-15 31 x 31 14.6 35.3 By request MPC 31-18 31 x 31 17.6 38.7 By request MPC 31-21 31 x 31 20.6 42.1 By request MPC 31-23 31 x 31 22.6 44.3 By request MPC 31-28 31 x 31 27.6 50.0 By request MPC 31-33 31 x 31 32.6 55.7 By request

Material : Copper 1100 Finish : Anti-Oxidation Remarks : Model number MPC31-12 indicate 31x31mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

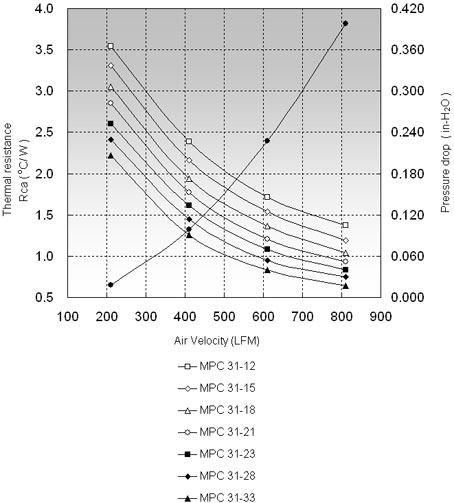

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPC 31-12 3.55 2.39 1.72 MPC 31-15 3.31 2.16 1.54 MPC 31-18 3.06 1.94 1.37 MPC 31-21 2.85 1.77 1.21 MPC 31-23 2.60 1.61 1.08 MPC 31-28 2.42 1.45 0.95 MPC 31-33 2.22 1.26 0.83
