:: MPC23 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MPC 23-12 23 x 23 11.6 19.3 By request MPC 23-15 23 x 23 14.6 21.8 By request MPC 23-18 23 x 23 17.6 24.3 By request MPC 23-21 23 x 23 20.6 26.7 By request MPC 23-23 23 x 23 22.6 28.4 By request MPC 23-28 23 x 23 27.6 32.6 By request MPC 23-33 23 x 23 32.6 36.7 By request

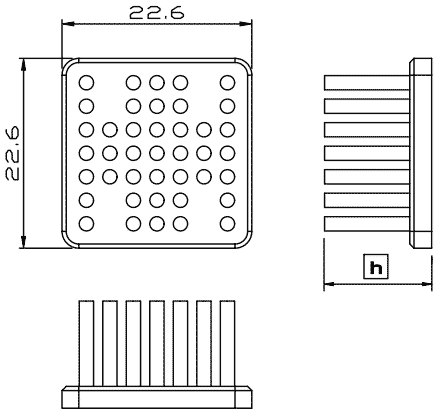

Material : Copper 1100 Finish : Anti-Oxidation Remarks : Model number MPC23-12 indicate 23x23mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

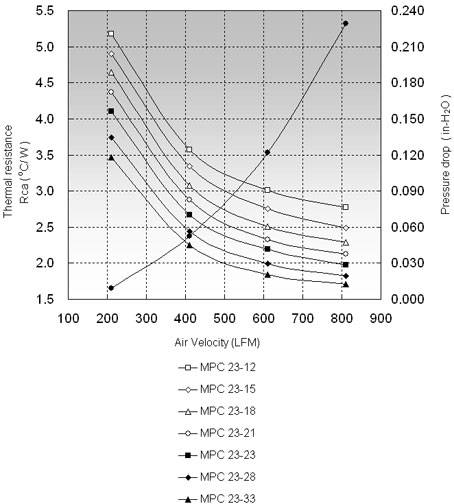

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPC 23-12 5.18 3.57 3.01 MPC 23-15 4.91 3.34 2.75 MPC 23-18 4.64 3.07 2.51 MPC 23-21 4.37 2.88 2.32 MPC 23-23 4.11 2.67 2.20 MPC 23-28 3.74 2.44 1.99 MPC 23-33 3.47 2.25 1.84
