:: MPC22 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MPC 22-12 22 x 22 11.6 15.9 By request
MPC 22-15 22 x 22 14.6 17.6 By request
MPC 22-18 22 x 22 17.6 19.3 By request
MPC 22-21 22 x 22 20.6 21.0 By request
MPC 22-23 22 x 22 22.6 22.1 By request
MPC 22-28 22 x 22 27.6 25.0 By request
MPC 22-33 22 x 22 32.6 27.8 By request

Home » Passive Heat Sink » MPC Series » MPC22 – Malico Inc.

Material
 : Copper 1100
Finish
 : Anti-Oxidation
Remarks
 :

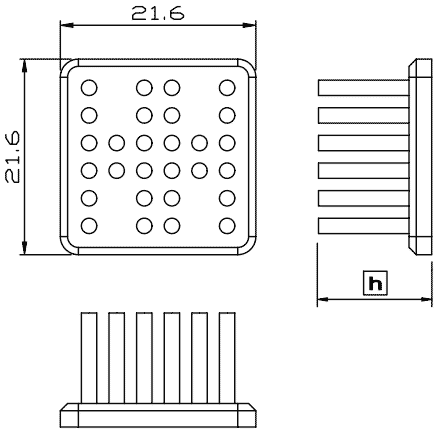

Model number MPC22-12 indicate 22x22mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

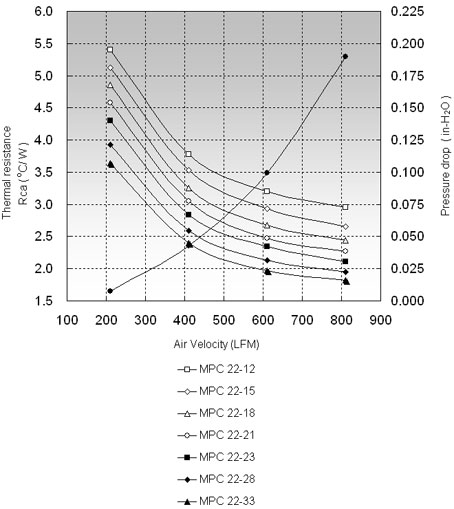

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MPC 22-12 5.41 3.78 3.20
MPC 22-15 5.13 3.53 2.93
MPC 22-18 4.86 3.26 2.68
MPC 22-21 4.58 3.05 2.48
MPC 22-23 4.30 2.83 2.35
MPC 22-28 3.92 2.59 2.13
MPC 22-33 3.64 2.40 1.97
