:: MPC17 :: Dimension
Model No. L x W (mm) Height (mm) Weight (grams) CAD
MPC 17-11 17 x 17 10.7 9.5 By request
MPC 17-14 17 x 17 13.7 11.2 By request
MPC 17-17 17 x 17 16.7 12.9 By request
MPC 17-20 17 x 17 19.7 14.6 By request
MPC 17-22 17 x 17 21.7 15.7 By request
MPC 17-27 17 x 17 26.7 18.5 By request
MPC 17-32 17 x 17 31.7 21.4 By request


Material
: Copper 1100
Finish
: Anti-Oxidation
Remarks
:

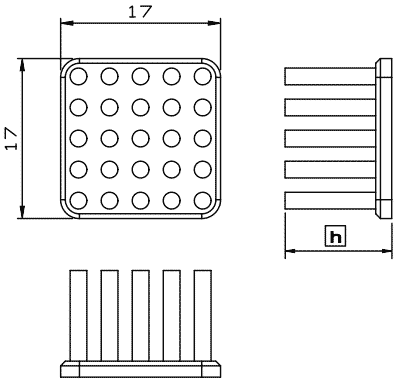

Model number MPC17-11 indicate 17x17mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

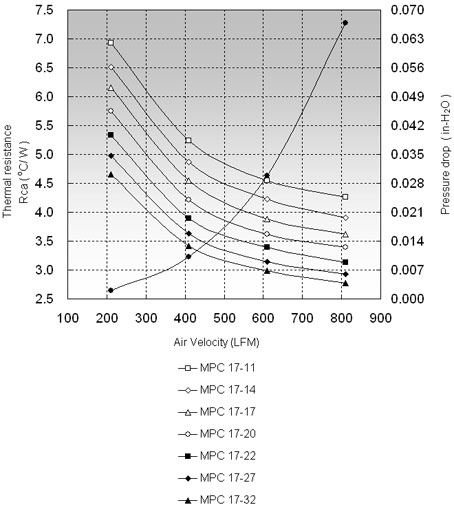

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MPC 17-11 6.92 5.24 4.55
MPC 17-14 6.51 4.87 4.22
MPC 17-17 6.15 4.55 3.88
MPC 17-20 5.75 4.21 3.62
MPC 17-22 5.34 3.89 3.39
MPC 17-27 4.98 3.63 3.15
MPC 17-32 4.66 3.41 2.98
