:: MPC16 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MPC 16-11 16 x 16 11.3 9.8 By request MPC 16-14 16 x 16 14.3 11.3 By request MPC 16-17 16 x 16 17.3 12.8 By request MPC 16-20 16 x 16 20.3 14.3 By request MPC 16-22 16 x 16 22.3 15.4 By request MPC 16-27 16 x 16 27.3 17.9 By request MPC 16-32 16 x 16 32.3 20.4 By request

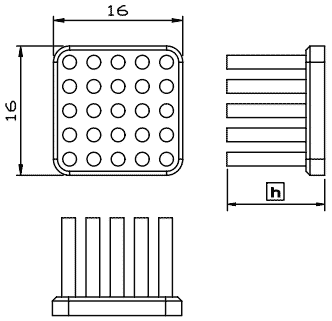

Material : Copper 1100 Finish : Anti-Oxidation Remarks : Model number MPC16-11 indicate 16x16mm is package footprint and 11 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

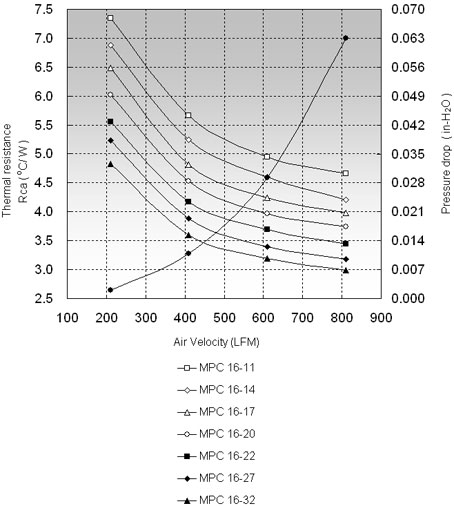

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MPC 16-11 7.35 5.66 4.94 MPC 16-14 6.88 5.24 4.60 MPC 16-17 6.48 4.82 4.24 MPC 16-20 6.02 4.53 3.96 MPC 16-22 5.56 4.17 3.69 MPC 16-27 5.23 3.88 3.40 MPC 16-32 4.83 3.60 3.20
