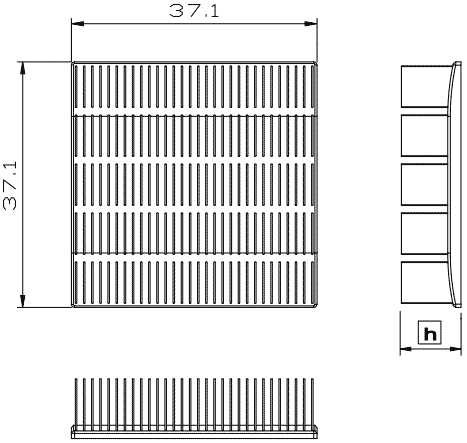

:: MLT :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MLT 37.5-03 37.5 x 37.5 3.0 8.1 By request MLT 37.5-06 37.5 x 37.5 6.0 9.9 By request MLT 37.5-09 37.5 x 37.5 9.0 11.7 By request

Material : Aluminum 1070 Finish : Black anodize Remarks : Model number MLT 37.5-03 indicate 37.5×37.5mm is package footprint and 3 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

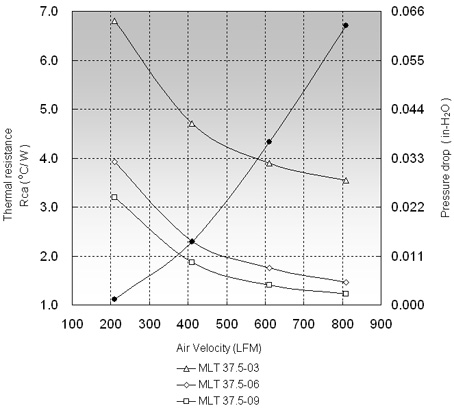

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MLT 37.5-03 6.80 4.70 3.90 MLT 37.5-06 3.93 2.30 1.76 MLT 37.5-09 3.20 1.87 1.40
