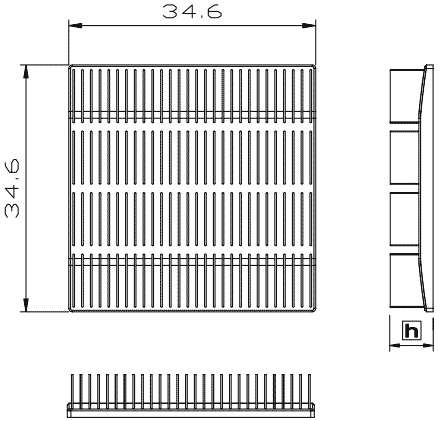

:: MLT :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MLT 35-03 35 x 35 3.0 7.1 By request MLT 35-06 35 x 35 6.0 8.7 By request MLT 35-09 35 x 35 9.0 10.3 By request

Material : Aluminum 1070 Finish : Black anodize Remarks : Model number MLT 35-03 indicate 35x35mm is package footprint and 3 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

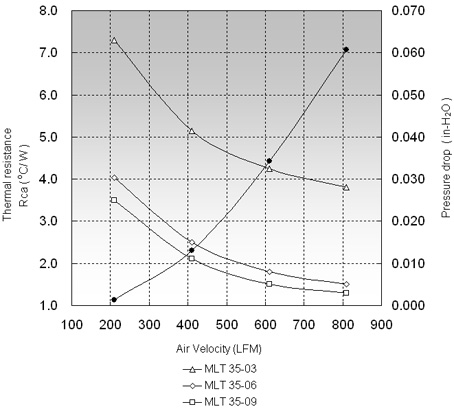

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MLT 35-03 7.30 5.14 4.25 MLT 35-06 4.04 2.50 1.80 MLT 35-09 3.50 2.11 1.50
