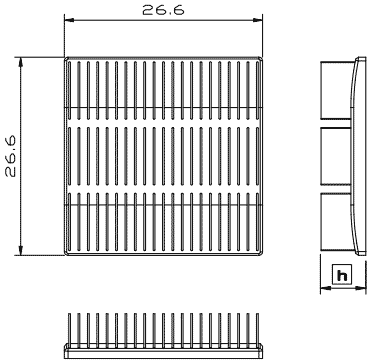

:: MLT :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MLT 27-03 27 x 27 3.0 4.2 By request MLT 27-06 27 x 27 6.0 5.1 By request MLT 27-09 27 x 27 9.0 6.0 By request

Material : Aluminum 1070 Finish : Black anodize Remarks : Model number MLT 27-03 indicate 27x27mm is package footprint and 3 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

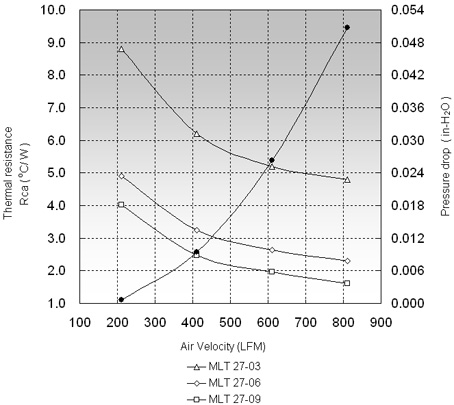

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MLT 27-03 8.80 6.20 5.20 MLT 27-06 4.90 3.25 2.64 MLT 27-09 4.02 2.46 1.96
