:: MLT :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD MLT 25-03 25 x 25 3.0 3.6 By request MLT 25-06 25 x 25 6.0 4.4 By request MLT 25-09 25 x 25 9.0 5.2 By request

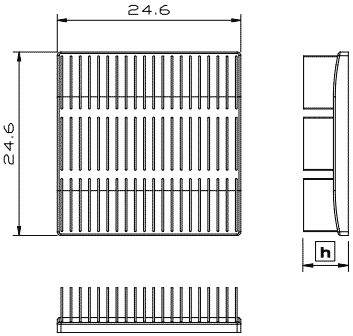

Material : Aluminum 1070 Finish : Black anodize Remarks : Model number MLT 25-03 indicate 25x25mm is package footprint and 3 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

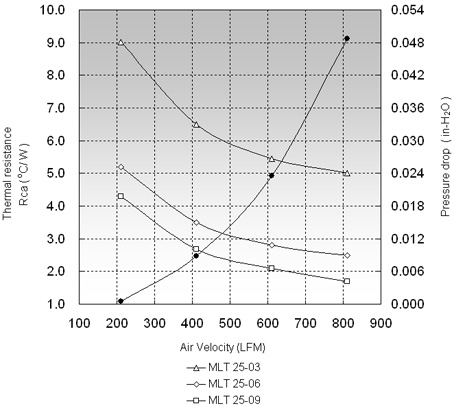

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MLT 25-03 9.02 6.50 5.45 MLT 25-06 5.20 3.50 2.80 MLT 25-09 4.30 2.67 2.10
