H90 – Malico Inc.

Home » Passive Heat Sink » H Series » H90 – Malico Inc.

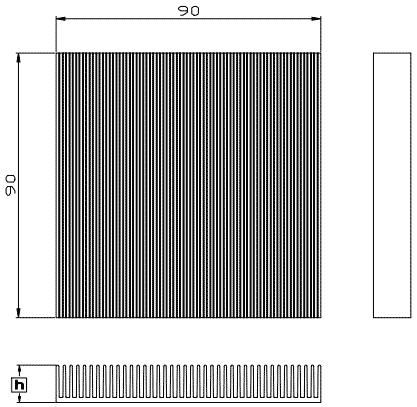

:: H :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD H 90-06 90 x 90 6.3 76.7 By request H 90-10 90 x 90 9.5 104.7 By request H 90-13 90 x 90 12.7 132.7 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H90-06 indicate 90x90mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

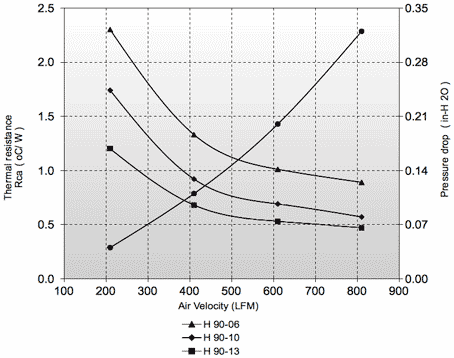

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) H90-06 2.30 1.33 1.01 H90-10 1.74 0.92 0.69 H90-13 1.20 0.68 0.53
