:: H :: Dimension

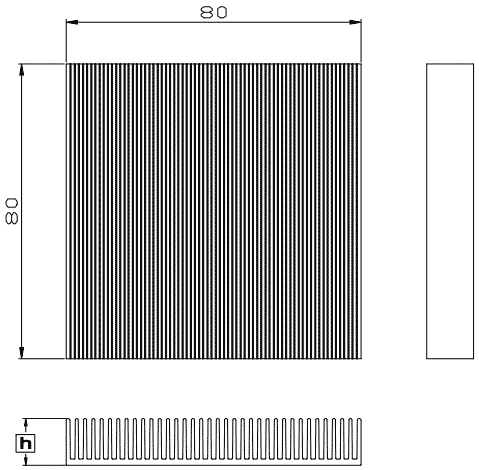

Model No. L x W (mm) Height (mm) Weight (grams) CAD H 80-06 80 x 80 6.3 61.2 By request H 80-10 80 x 80 9.5 83.7 By request H 80-13 80 x 80 12.7 106.2 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H80-06 indicate 80x80mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

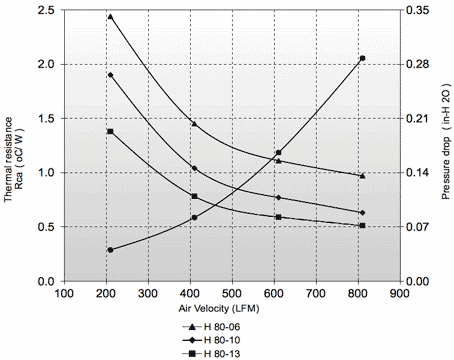

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) H80-06 2.44 1.45 1.11 H80-10 1.90 1.04 0.77 H80-13 1.38 0.78 0.59
