:: H :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD H 50-06 50 x 50 6.3 26 By request H 50-10 50 x 50 9.5 29 By request H 50-13 50 x 50 12.7 32 By request

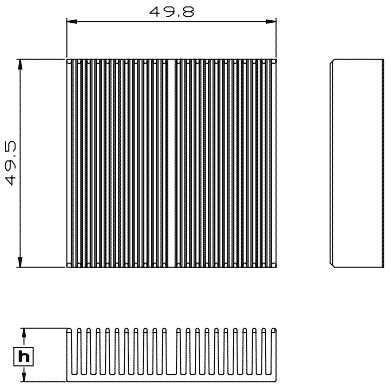

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H50-06 indicate 50x50mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

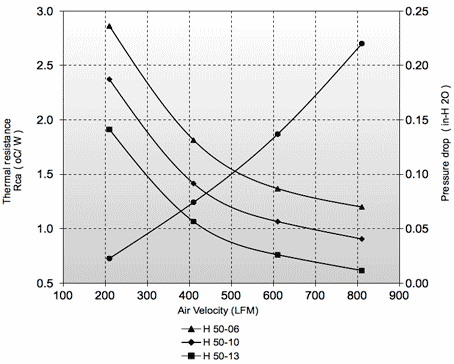

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) H50-06 2.86 1.81 1.37 H50-10 2.37 1.42 1.06 H50-13 1.91 1.06 0.76
