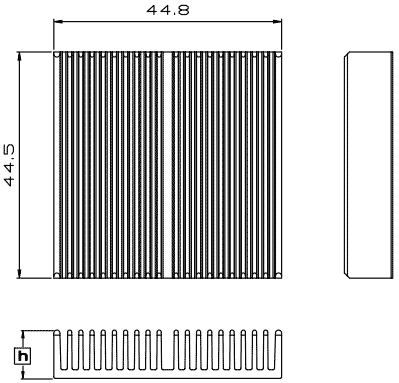

:: H :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD H 45-06 45 x 45 6.3 18.8 By request H 45-10 45 x 45 9.5 25.3 By request H 45-13 45 x 45 12.7 31.8 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H45-06 indicate 45x45mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

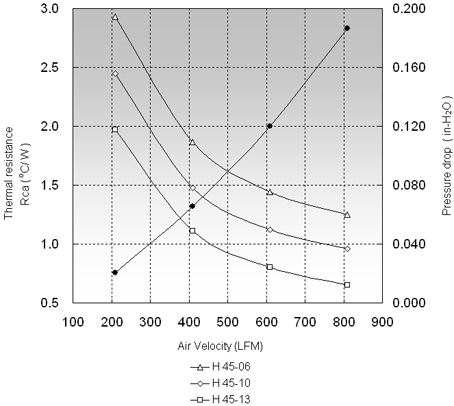

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) H 45-06 2.93 1.87 1.44 H 45-10 2.45 1.47 1.12 H 45-13 1.97 1.11 0.80
