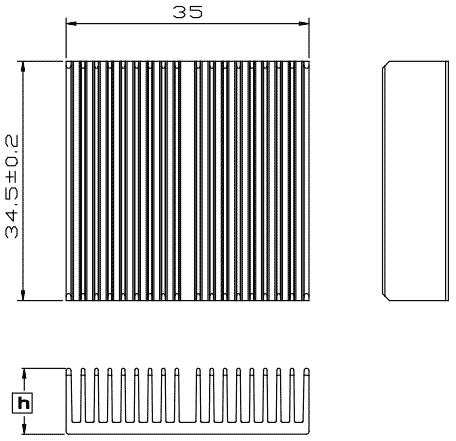

:: H :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD H 35-06 35 x 35 6.3 9.6 By request H 35-10 35 x 35 9.5 12.6 By request H 35-13 35 x 35 12.7 15.4 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H35-06 indicate 35x35mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

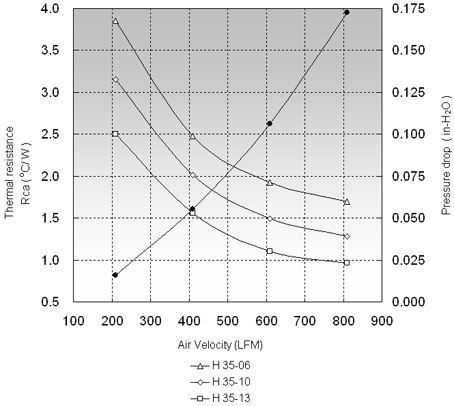

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) 200(LFM) 400(LFM) 600(LFM) H35-06 3.85 2.48 1.92 H35-10 3.15 2.01 1.49 H35-13 2.50 1.56 1.10
