:: H :: Dimension

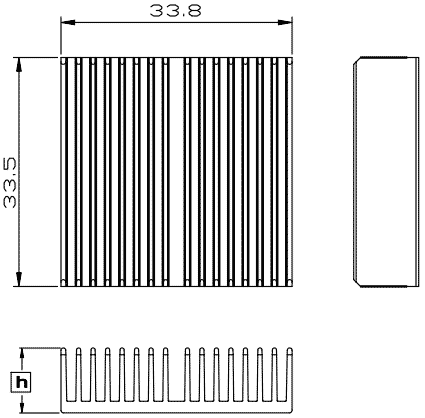

Model No. L x W (mm) Height (mm) Weight (grams) CAD H 34-06 34 x 34 6.3 9.2 By request H 34-10 34 x 34 9.5 12.1 By request H 34-13 34 x 34 12.7 15.0 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H34-06 indicate 34x34mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::

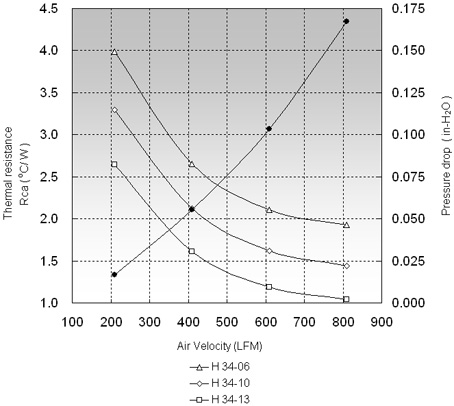

	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) 200(LFM) 400(LFM) 600(LFM) H34-06 3.98 2.66 2.10 H34-10 3.29 2.12 1.62 H34-13 2.64 1.61 1.19
