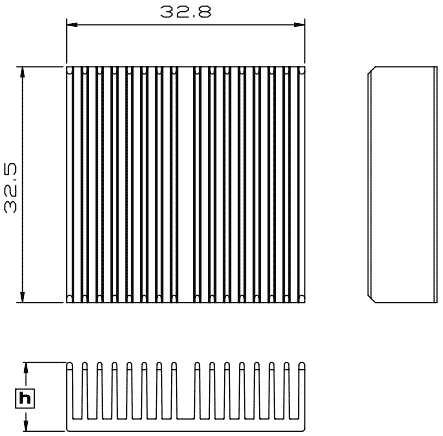

:: H :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD H 33-06 33 x 33 6.3 9.1 By request H 33-10 33 x 33 9.5 11.9 By request H 33-13 33 x 33 12.7 14.8 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H33-06 indicate 33x33mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

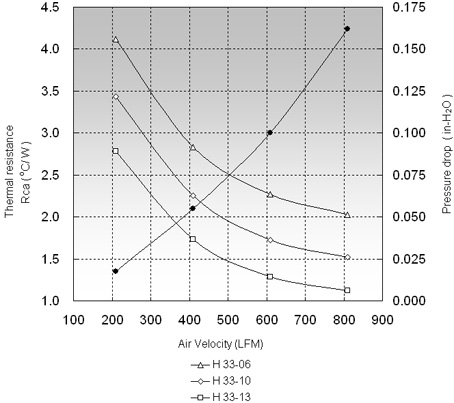

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) 200(LFM) 400(LFM) 600(LFM) H 33-06 4.12 2.83 2.27 H 33-10 3.43 2.25 1.72 H 33-13 2.79 1.73 1.28
