H31 – Malico Inc.

Home » Passive Heat Sink » H Series » H31 – Malico Inc.

:: H :: Dimension

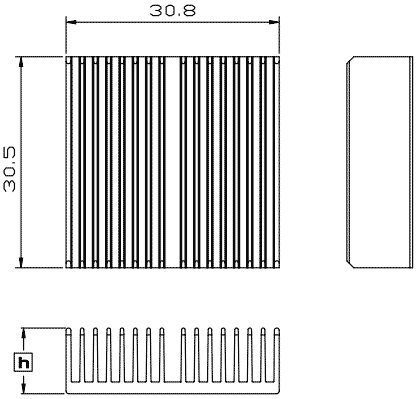

Model No. L x W (mm) Height (mm) Weight (grams) CAD H 31-06 31 x 31 6.3 7.7 By request H 31-10 31 x 31 9.5 9.9 By request H 31-12 31 x 31 12.0 11.8 By request H 31-13 31 x 31 12.7 12.1 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H31-06 indicate 31x31mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::

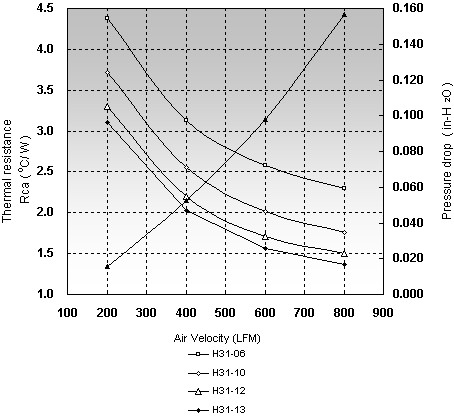

	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) 200(LFM) 400(LFM) 600(LFM) H 31-06 4.38 3.13 2.58 H 31-10 3.72 2.55 2.02 H 31-12 3.31 2.20 1.71 H 31-13 3.10 2.02 1.56
