H29 – Malico Inc.

Home » Passive Heat Sink » H Series » H29 – Malico Inc.

:: H :: Dimension

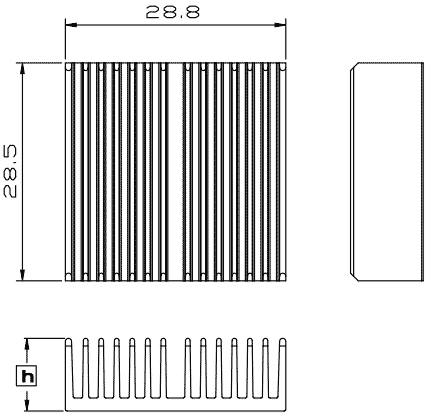

Model No. L x W (mm) Height (mm) Weight (grams) CAD H 29-06 29 x 29 6.3 7.0 By request H 29-10 29 x 29 9.5 9.2 By request H 29-13 29 x 29 12.7 11.4 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H29-06 indicate 29x29mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

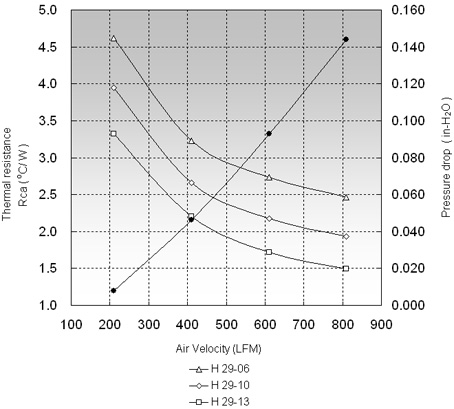

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) 200(LFM) 400(LFM) 600(LFM) H29-06 4.62 3.23 2.73 H29-10 3.95 2.66 2.18 H29-13 3.32 2.20 1.72
