H27 – Malico Inc.

Home » Passive Heat Sink » H Series » H27 – Malico Inc.
:: H :: Dimension

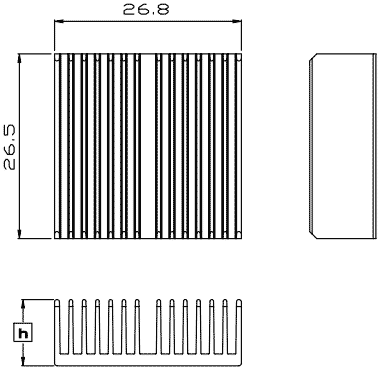

Model No. L x W (mm) Height (mm) Weight (grams) CAD
H 27-06 27 x 27 6.3 5.8 By request
H 27-10 27 x 27 9.5 7.5 By request
H 27-13 27 x 27 12.7 9.2 By request


Material
: Aluminum 6063
Finish
: Black anodize
Remarks:
:
Model number H27-06 indicate 27x27mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::

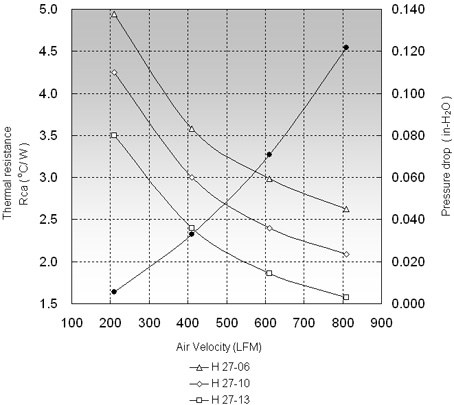

Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
H 27-06 4.94 3.58 2.99
H 27-10 4.25 3.00 2.40
H 27-13 3.50 2.40 1.86
