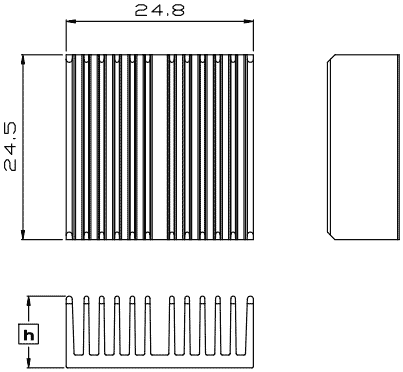

:: H :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD H 25-06 25 x 25 6.3 5.2 By request H 25-10 25 x 25 9.5 6.8 By request H 25-13 25 x 25 12.7 8.4 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H25-06 indicate 25x25mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

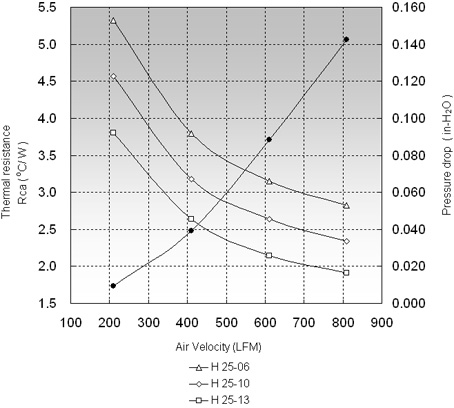

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) H 25-06 5.32 3.79 3.15 H 25-10 4.57 3.18 2.63 H 25-13 3.80 2.64 2.15
