:: H :: Dimension

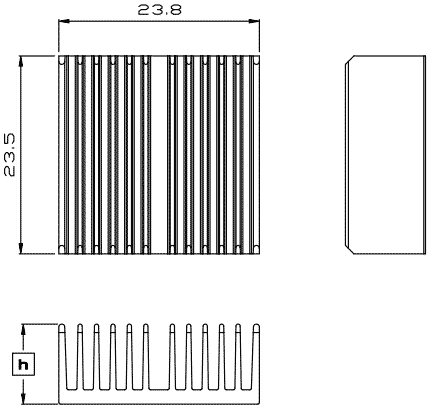

Model No. L x W (mm) Height (mm) Weight (grams) CAD H 24-06 24 x 24 6.3 4.5 By request H 24-10 24 x 24 9.5 5.8 By request H 24-13 24 x 24 12.7 7.1 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H24-06 indicate 24x24mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::

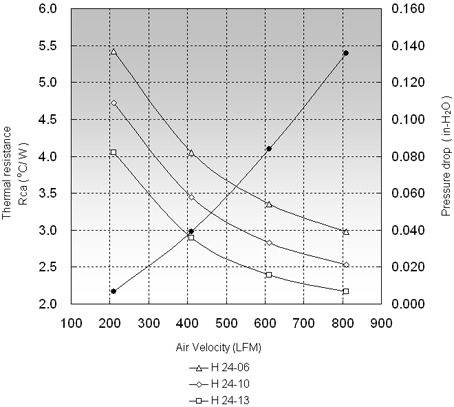

	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) H24-06 5.43 4.05 3.36 H24-10 4.72 3.45 2.83 H24-13 4.05 2.89 2.39
