:: H :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD H 23-06 23 x 23 6.3 4.2 By request H 23-10 23 x 23 9.5 5.5 By request H 23-13 23 x 23 12.7 6.7 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H23-06 indicate 23x23mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

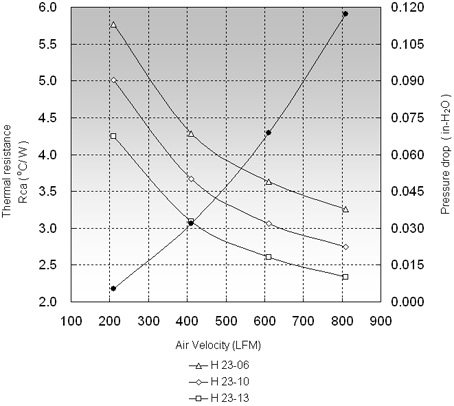

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) H23-06 5.77 4.28 3.63 H23-10 5.01 3.67 3.06 H23-13 4.25 3.09 2.61
