H22 – Malico Inc.

Home » Passive Heat Sink » H Series » H22 – Malico Inc.

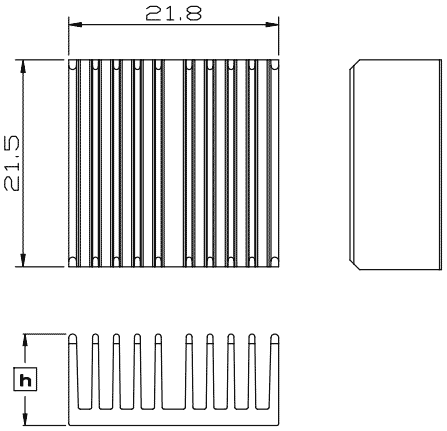

:: H :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD H 22-06 22 x 22 6.3 4.0 By request H 22-10 22 x 22 9.5 5.1 By request H 22-13 22 x 22 12.7 6.3 By request

Material : Aluminum 6063 Finish : Black anodize Remarks: : Model number H22-06 indicate 22x22mm is package footprint and 6 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

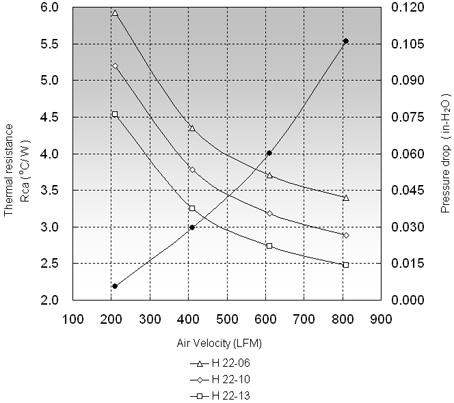

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) H 22-06 5.93 4.35 3.71 H 22-10 5.20 3.78 3.18 H 22-13 4.54 3.25 2.73
