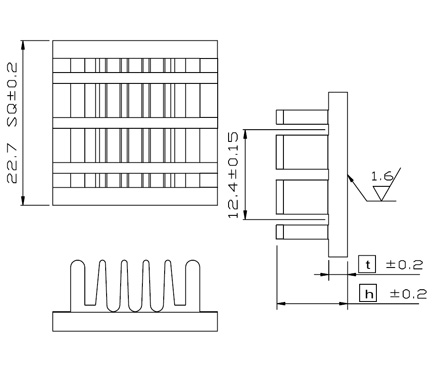

:: EX23 :: Dimension

Model No. L x W (mm) Height (mm) Weight (grams) CAD EX 23-10 23 x 23 9.8 6.0 By request

Home » Passive Heat Sink » EX Series » EX23 – Malico Inc. Material : Aluminum 6063 Finish : Black anodize Remarks : Model number EX23-10 indicate 23x23mm is package footprint and 10 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) EX 23-10 10.40 7.65 6.45
