:: MWA55 :: Dimension

Model No.	Height (mm)	Thickness (mm)	Weight (grams)	CAD	Attachment
MWA 55-12	11.6	2.6	20.0	By request	Clip , Tape
MWA 55-15	14.6	2.6	25.7	By request	Clip , Tape
MWA 55-18	17.6	2.6	28.1	By request	Clip , Tape
MWA 55-21	20.6	2.6	30.1	By request	Clip , Tape
MWA 55-23	22.6	2.6	32.6	By request	Clip , Tape
MWA 55-28	27.6	2.6	37.0	By request	Clip , Tape
MWA 55-33	32.6	2.6	41.3	By request	Clip , Tape

alt

Material	:	Aluminum 6063
Finish	:	Black anodize

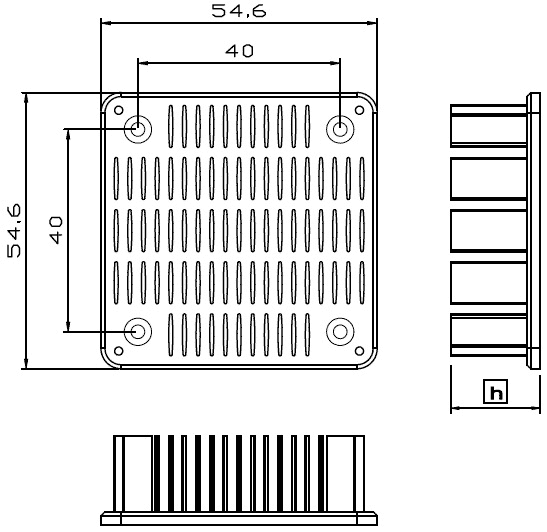

Remarks	:	Model number MWA55-12 indicate 55x55mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

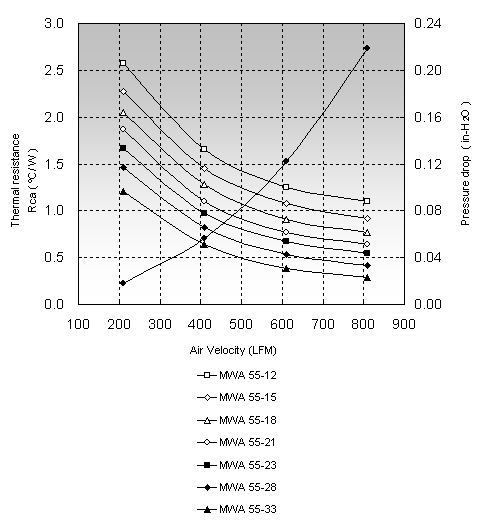

:: Rth ( ^oC/W ) ::

alt

	Air Velocity / Rth (^oC/W )
	200(LFM)	400(LFM)	600(LFM)
MWA 55-12	2.57	1.65	1.25
MWA 55-15	2.28	1.45	1.07
MWA 55-18	2.06	1.28	0.91
MWA 55-21	1.87	1.10	0.77
MWA 55-23	1.67	0.97	0.67
MWA 55-28	1.47	0.83	0.53
MWA 55-33	1.20	0.64	0.38
