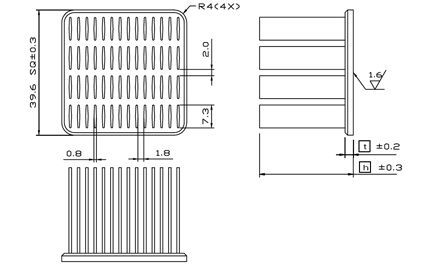

:: MWA40 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment MWA 40-12 11.6 2.6 20.5 By request Clip , Tape MWA 40-15 14.6 2.6 21.8 By request Clip , Tape MWA 40-18 17.6 2.6 24.0 By request Clip , Tape MWA 40-21 20.6 2.6 26.2 By request Clip , Tape MWA 40-23 22.6 2.6 27.7 By request Clip , Tape MWA 40-28 27.6 2.6 31.5 By request Clip , Tape MWA 40-33 32.6 2.6 35.2 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MWA40-12 indicate 40x40mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MWA 40-12 2.97 1.87 1.52 MWA 40-15 2.66 1.65 1.29 MWA 40-18 2.38 1.42 1.06 MWA 40-21 2.13 1.22 0.91 MWA 40-23 1.96 1.12 0.83 MWA 40-28 1.73 0.93 0.69 MWA 40-33 1.55 0.82 0.59
