:: MWA37.5 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
MWA 37.5-12 11.6 2.6 18.4 By request Clip , Tape
MWA 37.5-15 14.6 2.6 20.1 By request Clip , Tape
MWA 37.5-18 17.6 2.6 22.6 By request Clip , Tape
MWA 37.5-21 20.6 2.6 24.6 By request Clip , Tape
MWA 37.5-23 22.6 2.6 26.0 By request Clip , Tape
MWA 37.5-28 27.6 2.6 29.5 By request Clip , Tape
MWA 37.5-33 32.6 2.6 32.9 By request Clip , Tape


Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:
Model number MWA37.5-12 indicate 37.5×37.5mm is package footprint and 12mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

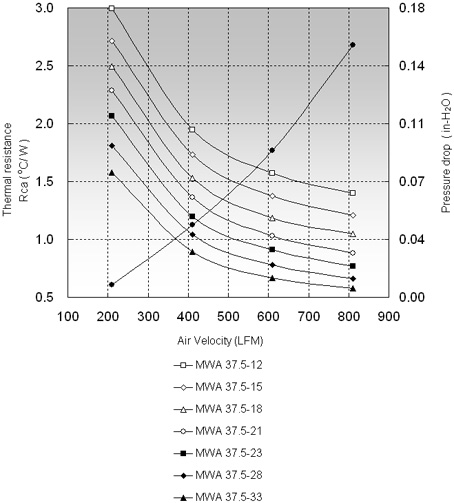

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MWA 37.5-12 2.99 1.95 1.57
MWA 37.5-15 2.72 1.67 1.34
MWA 37.5-18 2.49 1.45 1.11
MWA 37.5-21 2.29 1.29 0.96
MWA 37.5-23 2.12 1.16 0.88
MWA 37.5-28 1.86 0.98 0.75
MWA 37.5-33 1.67 0.84 0.64
