:: MWA35 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
MWA 35-12 11.6 2.6 16.1 By request Clip , Tape
MWA 35-15 14.6 2.6 17.8 By request Clip , Tape
MWA 35-18 17.6 2.6 19.5 By request Clip , Tape
MWA 35-21 20.6 2.6 21.3 By request Clip , Tape
MWA 35-23 22.6 2.6 22.4 By request Clip , Tape
MWA 35-28 27.6 2.6 25.3 By request Clip , Tape
MWA 35-33 32.6 2.6 28.2 By request Clip , Tape


Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:

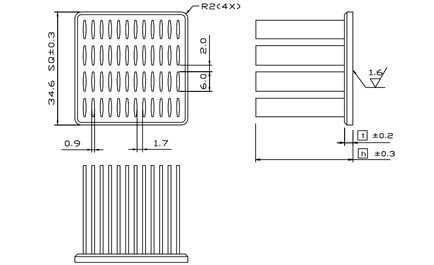

Model number MWA35-12 indicate 35x35mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MWA 35-12 3.25 2.07 1.64
MWA 35-15 3.01 1.87 1.46
MWA 35-18 2.75 1.69 1.27
MWA 35-21 2.59 1.52 1.15
MWA 35-23 2.38 1.35 1.01
MWA 35-28 2.01 1.10 0.82
MWA 35-33 1.79 0.95 0.72
