:: MWA31 :: Dimension
Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment
MWA 31-12 11.6 2.6 12.6 By request Clip , Tape
MWA 31-15 14.6 2.6 13.9 By request Clip , Tape
MWA 31-18 17.6 2.6 15.2 By request Clip , Tape
MWA 31-21 20.6 2.6 16.6 By request Clip , Tape
MWA 31-23 22.6 2.6 17.3 By request Clip , Tape
MWA 31-28 27.6 2.6 19.7 By request Clip , Tape
MWA 31-33 32.6 2.6 21.9 By request Clip , Tape




Material
: Aluminum 6063
Finish
: Black anodize
Remarks
:
Model number MWA31-12 indicate 31x31mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

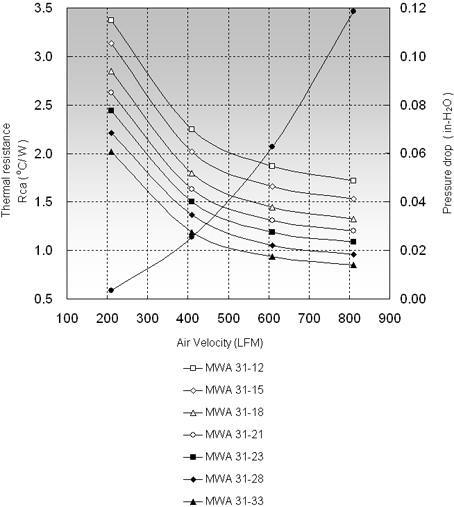

:: Rth ( oC/W ) ::
Air Velocity / Rth ( oC/W )
200(LFM) 400(LFM) 600(LFM)
MWA 31-12 3.37 2.25 1.87
MWA 31-15 3.13 2.02 1.66
MWA 31-18 2.85 1.79 1.45
MWA 31-21 2.63 1.59 1.31
MWA 31-23 2.44 1.44 1.21
MWA 31-28 2.14 1.28 1.06
MWA 31-33 1.91 1.11 0.93
