:: MWA29 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment MWA 29-12 11.6 2.6 10.4 By request Clip , Tape MWA 29-15 14.6 2.6 11.3 By request Clip , Tape MWA 29-18 17.6 2.6 12.2 By request Clip , Tape MWA 29-21 20.6 2.6 13.1 By request Clip , Tape MWA 29-23 22.6 2.6 13.7 By request Clip , Tape MWA 29-28 27.6 2.6 15.2 By request Clip , Tape MWA 29-33 32.6 2.6 16.8 By request Clip , Tape

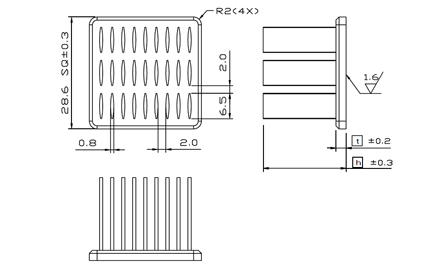

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MWA29-12 indicate 29x29mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

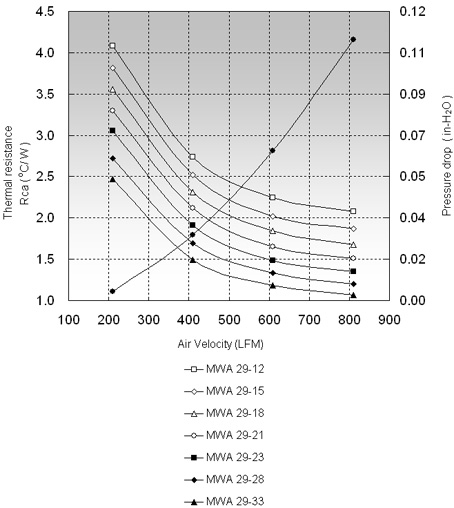

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MWA 29-12 4.09 2.74 2.25 MWA 29-15 3.81 2.52 2.02 MWA 29-18 3.56 2.31 1.81 MWA 29-21 3.30 2.12 1.65 MWA 29-23 3.06 1.91 1.53 MWA 29-28 2.72 1.66 1.28 MWA 29-33 2.47 1.49 1.18
