:: MWA27 :: Dimension

Model No. Height (mm) Thickness (mm) Weight (grams) CAD Attachment MWA 27-12 11.6 2.6 9.6 By request Clip , Tape MWA 27-15 14.6 2.6 10.6 By request Clip , Tape MWA 27-18 17.6 2.6 11.6 By request Clip , Tape MWA 27-21 20.6 2.6 12.6 By request Clip , Tape MWA 27-23 22.6 2.6 13.3 By request Clip , Tape MWA 27-28 27.6 2.6 14.9 By request Clip , Tape MWA 27-33 32.6 2.6 16.5 By request Clip , Tape

Material : Aluminum 6063 Finish : Black anodize Remarks : Model number MWA27-12 indicate 27x27mm is package footprint and 12 mm is overall height , all the dimensions are in arithmetic , the drawing overall height is real dimension

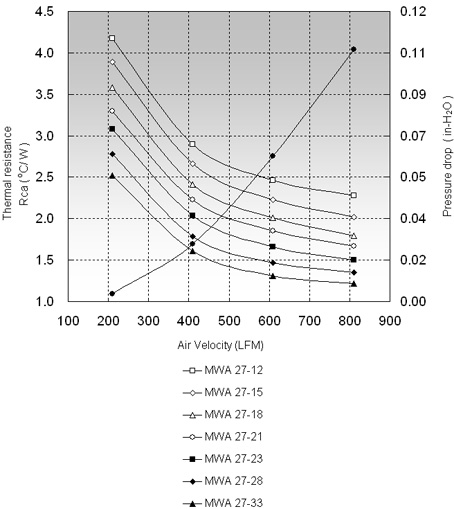

:: Rth ( oC/W ) ::
	Air Velocity / Rth ( oC/W ) 200(LFM) 400(LFM) 600(LFM) MWA 27-12 4.17 2.90 2.46 MWA 27-15 3.89 2.66 2.23 MWA 27-18 3.59 2.42 2.01 MWA 27-21 3.30 2.23 1.85 MWA 27-23 3.08 2.04 1.66 MWA 27-28 2.78 1.78 1.47 MWA 27-33 2.52 1.61 1.31
